Trailer LYS
About the product
A modern solution for the rapid deployment of communication, video surveillance, and lighting systems in the field.
Purpose of the Product
The product is designed for lifting antenna systems, cameras, lighting equipment and other equipment.
Can be used to accommodate electronic warfare and electronic warfare systems.
Used exclusively in a vertical position to ensure stability and safety.

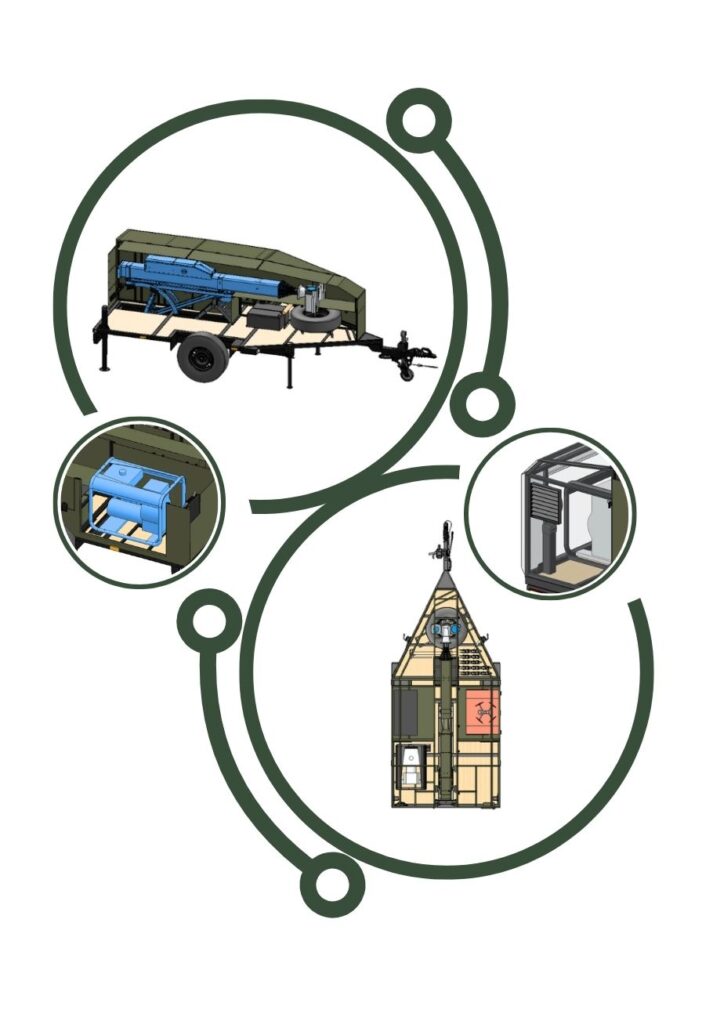

Installed Systems
“Athlete” Unit – designed to position the mast in a vertical orientation.
“Hyperion” Unit – a telescopic mast used to elevate various devices provided by the Customer, including:

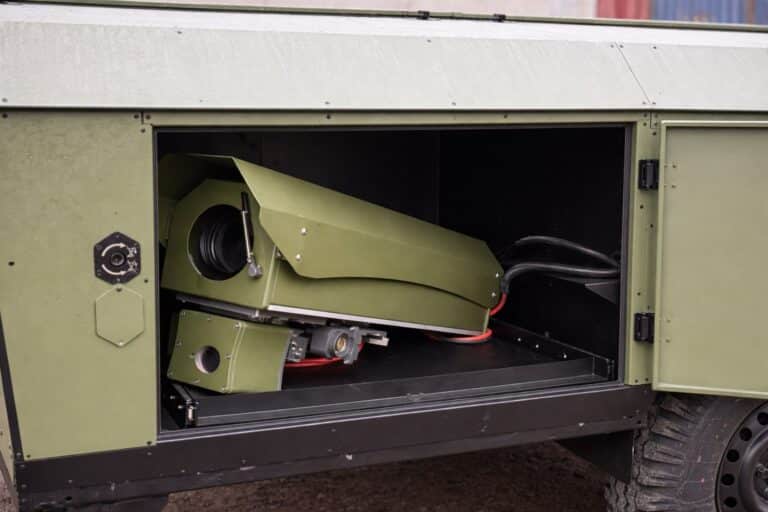

- video surveillance systems;
- electronic warfare (EW) equipment;
- antenna devices;
- lighting equipment, and more.

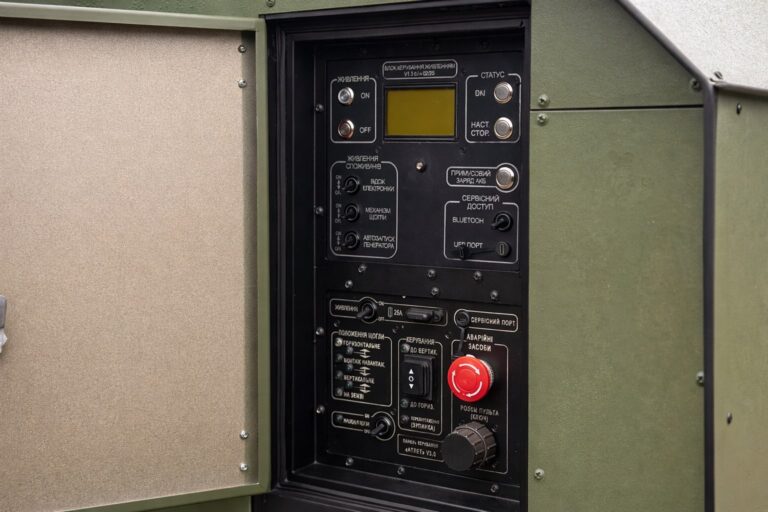

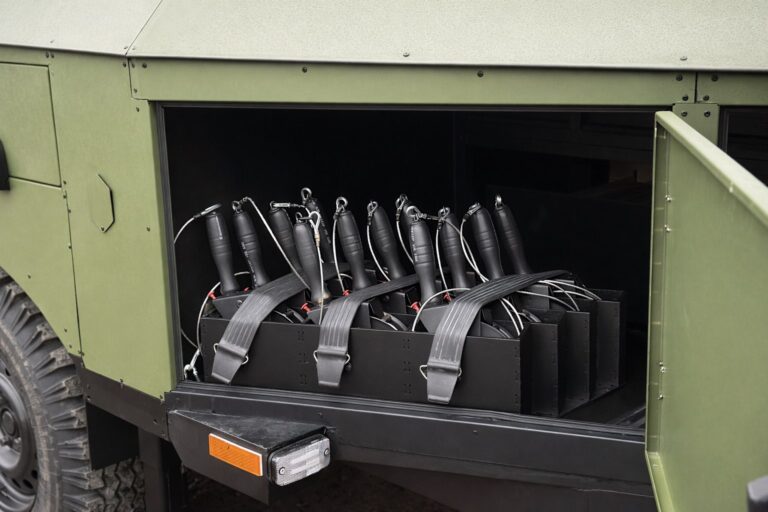

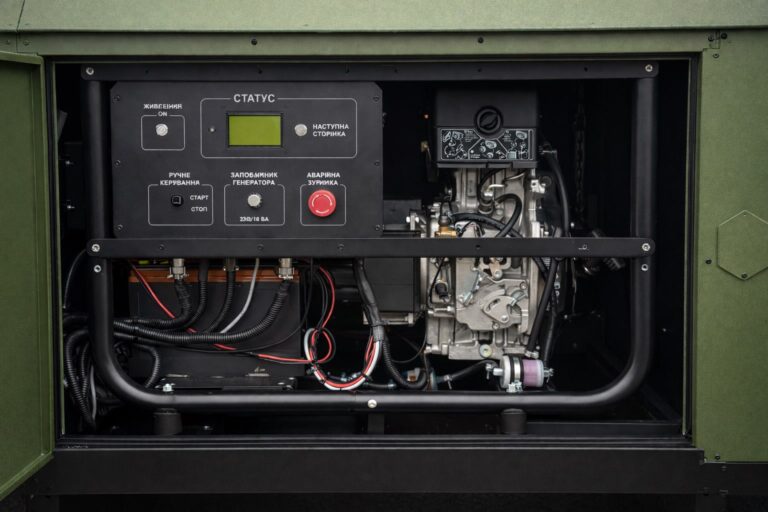

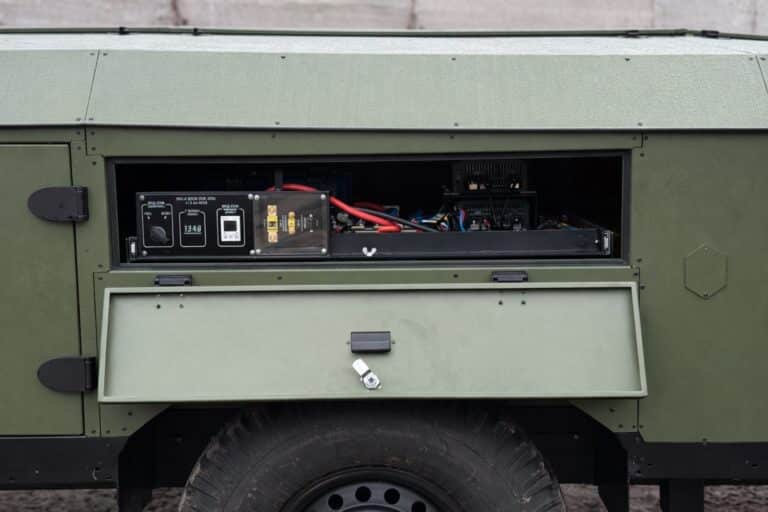

Power Supply System – includes a diesel generator, high-capacity batteries, and solar panels. It provides:
- uninterrupted power for the core electronic system equipment;
- automated start and stop of the diesel generator;
- battery charging from solar panels and the vehicle to which the trailer is connected.
Forced Cooling System for the Diesel Generator – maintains the optimal thermal operating conditions of the generator and prevents overheating.
Retractable UAV Table System (optional, at the Customer’s request) – designed for storage and operation of unmanned aerial vehicles (UAVs) supplied by the Customer.

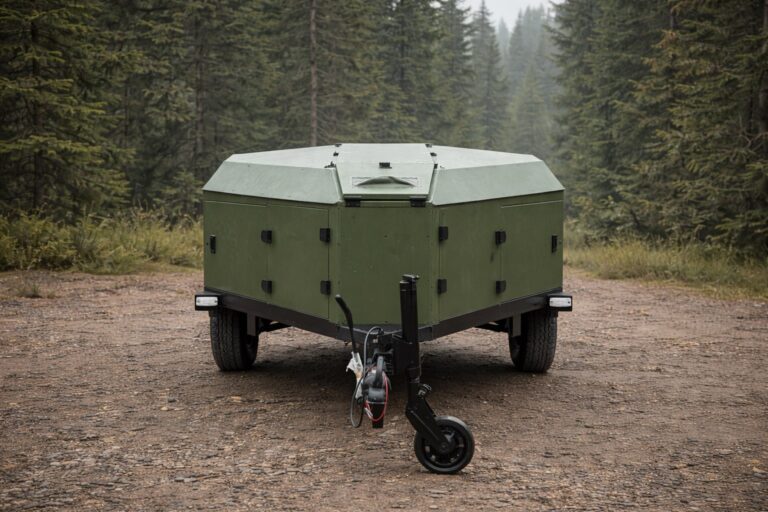

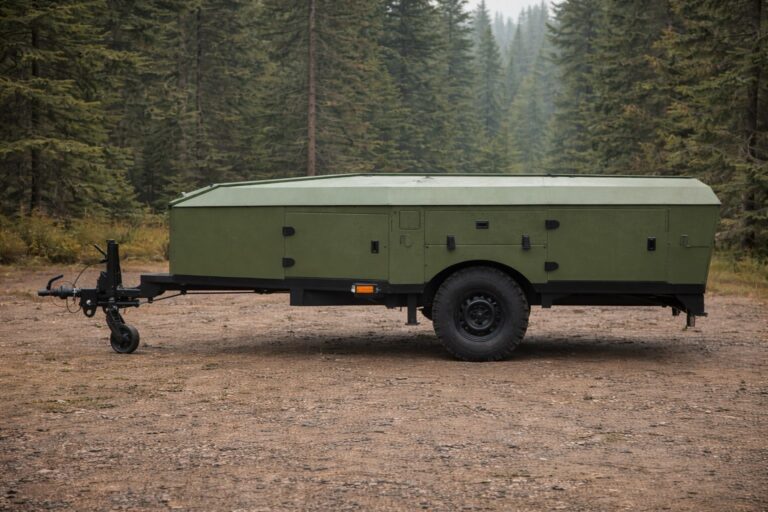

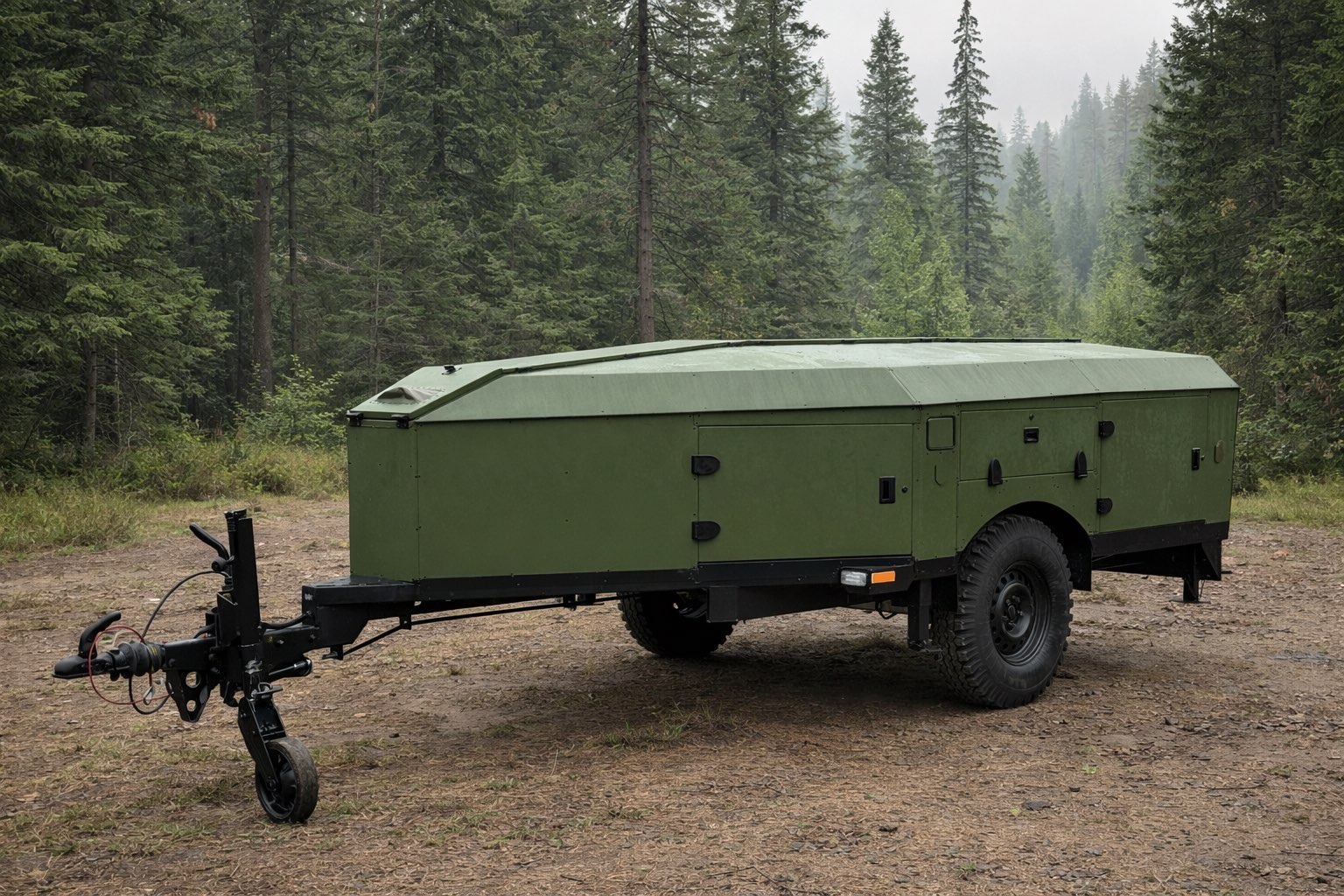

Appearance and Dimensions
Description | Value |
|---|---|
Height | 1675mm |
Length | 5200mm |
Width | 2000mm |
Total weight | not exceeding 1.6 tons |
Chassis type | single-axle platform with overrun brake |
Structure material | galvanized steel with aluminum cladding |
Exterior finish | combination of black and a color from the RAL 6063 palette |
- Dimensions can be changed and made to order
- Length: 5200 mm
- Width: 2000 mm
- Height: 1675 mm

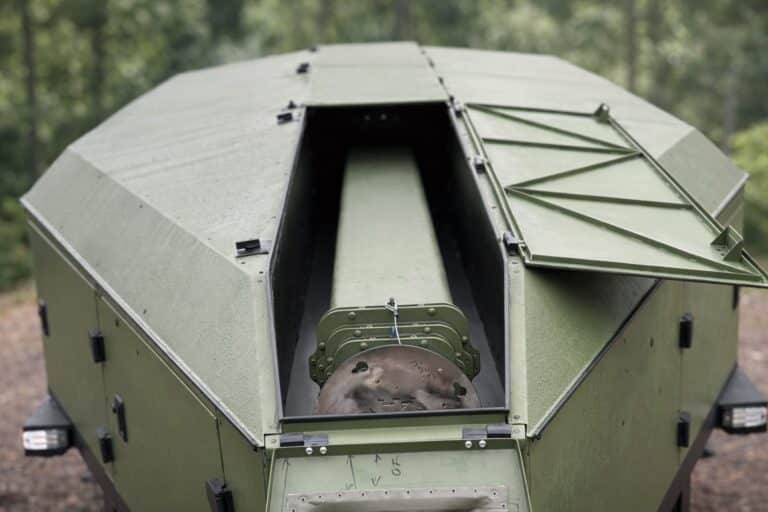

Unique Features of the "Hyperion" Mast
Weather Resistance – Operates reliably even under conditions of icing or snow accumulation.
Lifting Mechanism – Based on steel cables, ensuring strength and durability during operation.
Primary Drive System – Electric motor providing automated mast elevation.
Backup Drive – Manual mechanism allowing mast operation in case of power loss or failure of the main drive.
Equipped with a mast — the height of the complete mast ranges from 6 to 30 meters.
Let's Start Cooperating!
Interested in ordering a mast or have any questions?
Leave your contact details, and our specialists will get in touch with you!
Telescopic Mast “HYPERION”
Made of high-strength aluminum alloy and stainless steel under a “DEFSECINTEL” license, a reliable partner of our company.
The product is intended to lift various devices (antenna systems, video cameras, lighting equipment, etc.).
